| Model NO. | SFEP |
| Color | Natural, and Other Colors Could Be Customized |
| Maximum Voltage | <10kv |
| Thermal Rating | 200 200 |
| Application | Medical Usage |
| Inner Diameter | 1-100mm |
| Thickness | 0.10-0.30mm |
| Biocompatibility | ISO 10993 or USP Class VI |
| Shrink Ratio | 1.3:1 (1.6:1 Available) |
| Working Temperature | -65~200ºC |

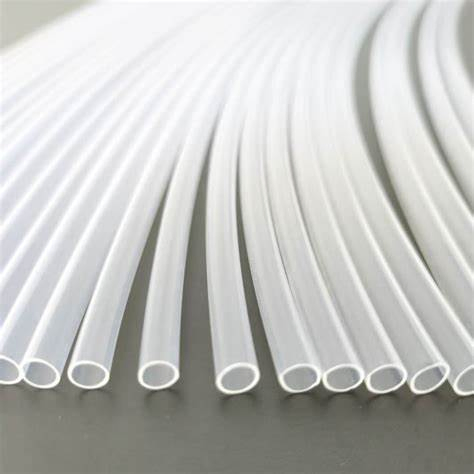

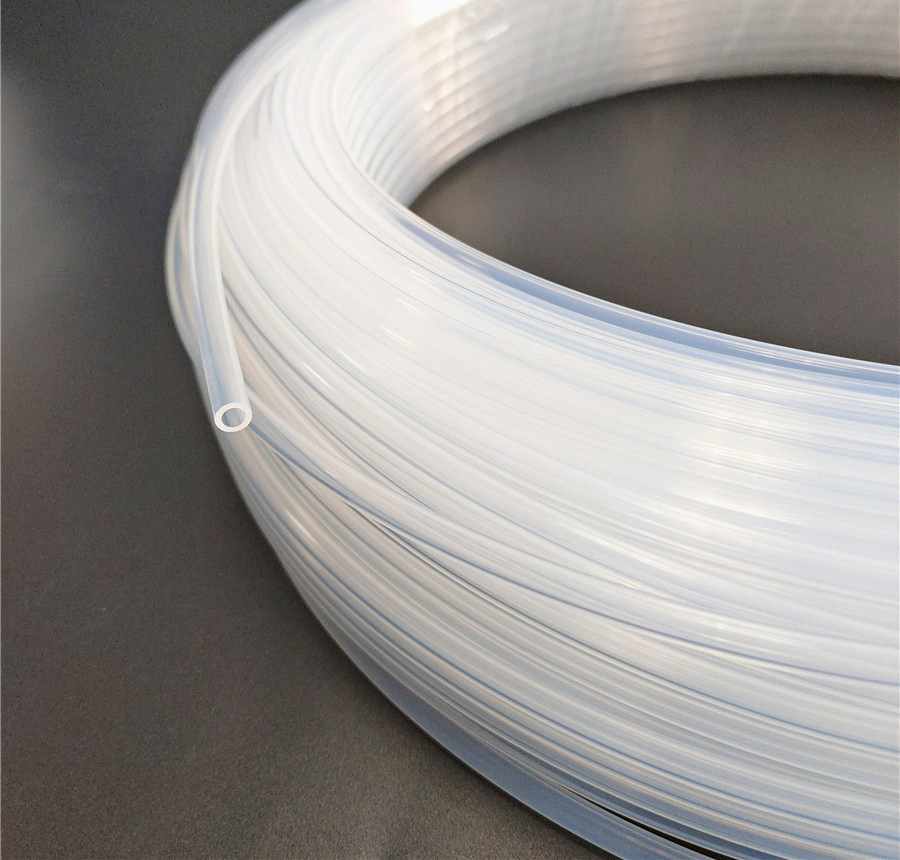

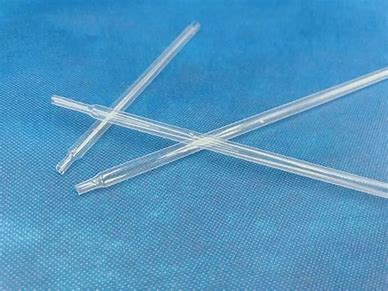

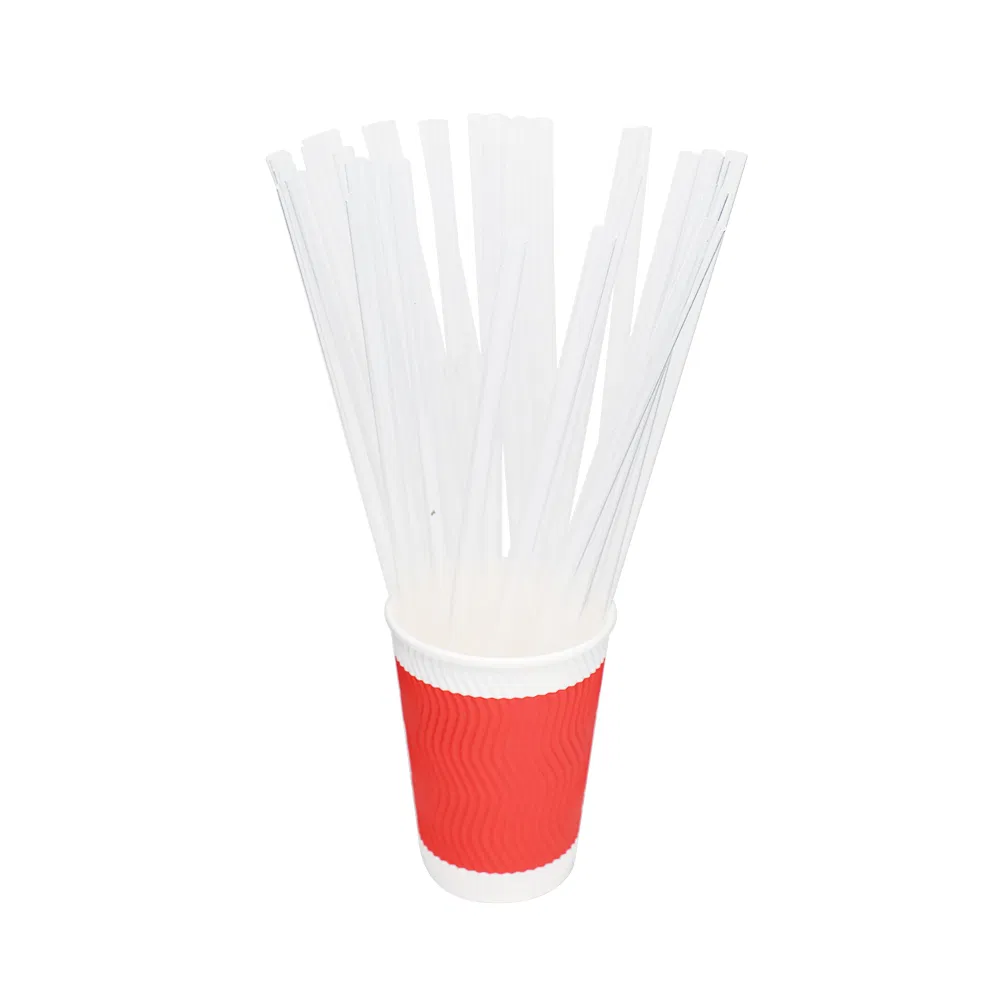

Heat Shrinkable Medical FEP tube is made of FEP with excellent 200ºC high-temperature performance, chemical resistance, high insulation, and excellent mechanical properties. FEP has excellent abrasion resistance and clarity.
Designed to provide insulation and mechanical protection in severe chemical and thermal environments. Widely used in electronic, aerospace, military, and communication fields.
| Property | Data |
|---|---|
| ID range | 1.0~100.00mm |
| Wall thickness | 0.10~0.30mm |
| Shrink ratio | 1.3 And 1.7 |
| Shrink temperature | 130ºC~240ºC |
| Melting Point | 250ºC-280ºC |
| Biocompatibility | ISO 10993 or USP Class VI |
| Sterilization method | Ethylene Oxide, Gamma Radiation, Electron Beam Etc |
| Environmentally | Rohs |

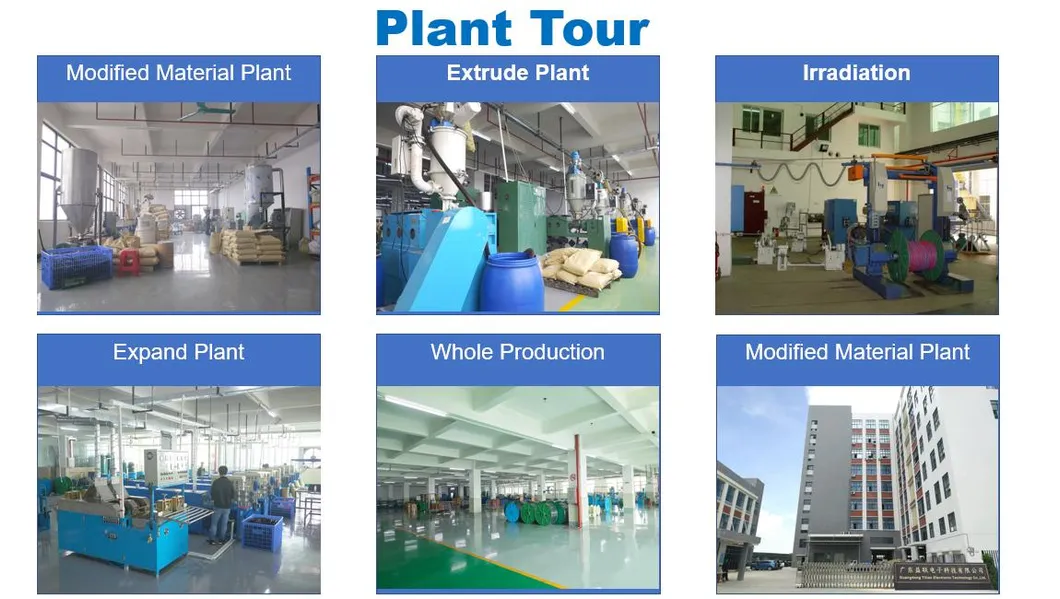

With 18 years of experience, our professional team specializes in the research and development, production, and sales of special heat shrink tubes and other radiation crosslinking materials. Our focus is on providing a wide range of products and solutions for insulation, connection, waterproofing, high temperature resistance, chemical resistance, EMI protection, and mechanical protection for wires and cables.
We offer a variety of heat shrink tubes and insulation tubes made from materials such as modified PE, PVDF, FEP, EPDM, Silicone, FKM, and PTFE. These products find extensive applications in electronic communication, automobile, high-speed rail, electric motor, aviation, medical, and other industries. Our production processes adhere to ISO9001 and IATF16949 quality management system standards, ensuring the stability and reliability of our product quality.
