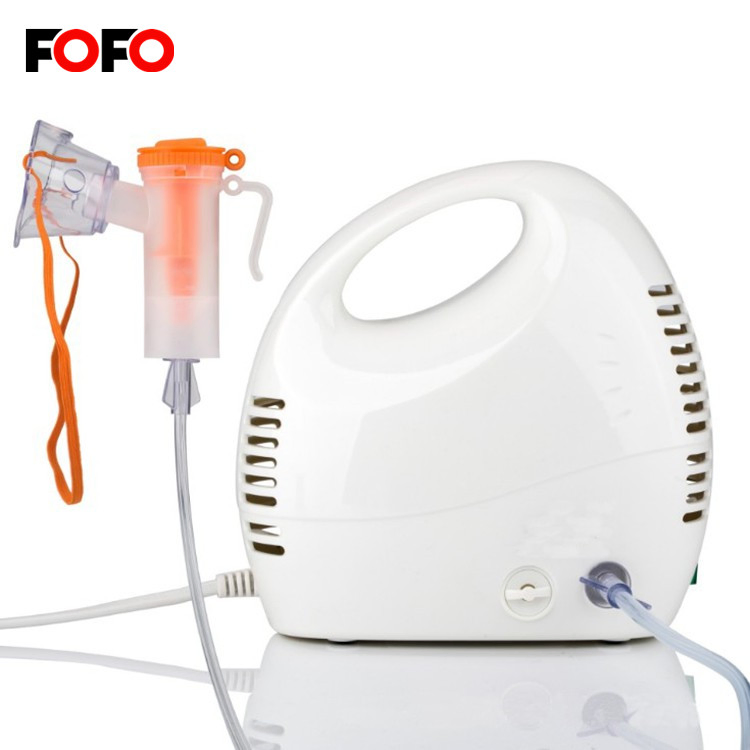

Optima Piston Compressor Nebulizer, Nebulizer System with Oxygen Mask

Customization:	Available
Quality Certification:	CE
ISO:	ISO13485

Basic Specifications

FDA Status:

510K

Warranty:

2 Years

Power Supply:

Plug in

Color:

White

Classification:

Class II

Type:

Breathing Apparatus

MMAD:

4.0

Nebulization Rate:

Above 0.4ml/Min

Power Consumption:

65W

Noise Level:

Below 60dba

Medication Capacity:

6ml

Production Capacity:

10,000,000 PCS/Month

Product Overview

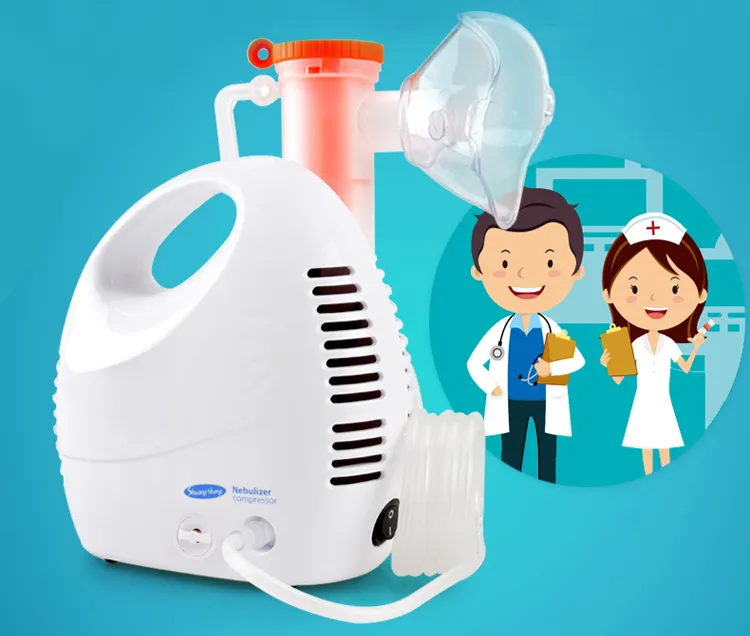

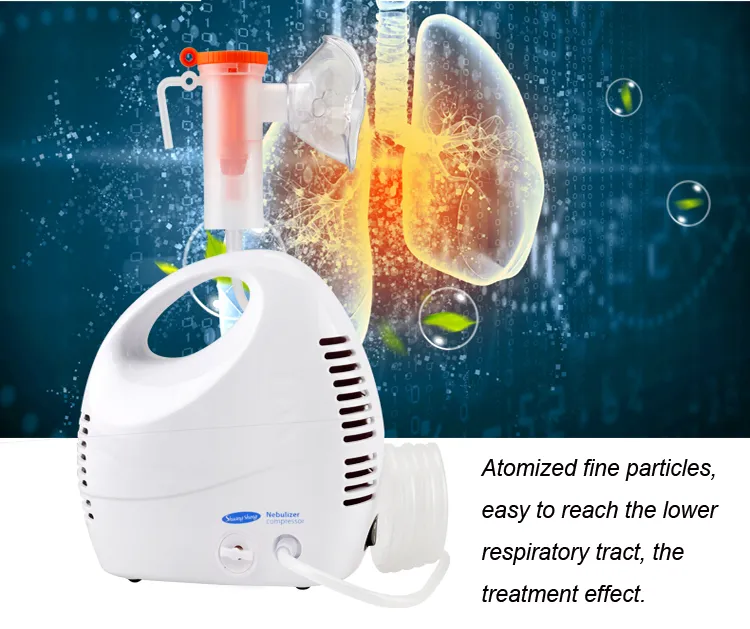

Compressor Nebulizer with Handle - Optimized for Home Use with Long Life Performance.

This nebulizer is a drug delivery device used to administer medication in the form of a mist inhaled into the lungs. It is professionally designed for the medical treatment of the upper and lower respiratory tracts.

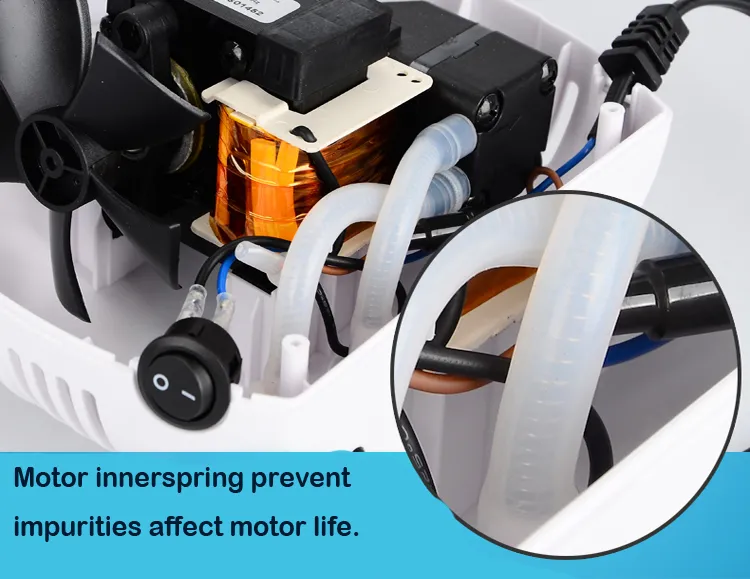

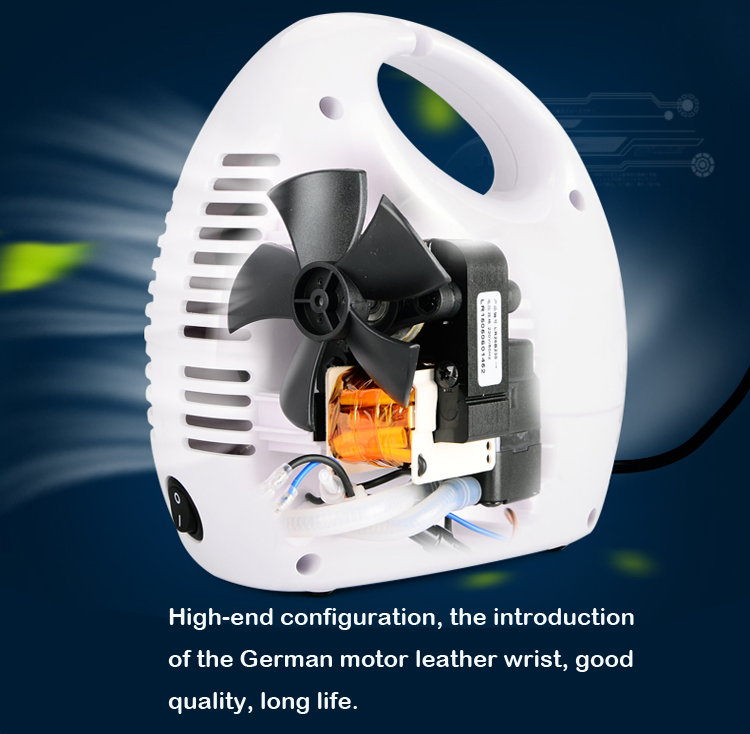

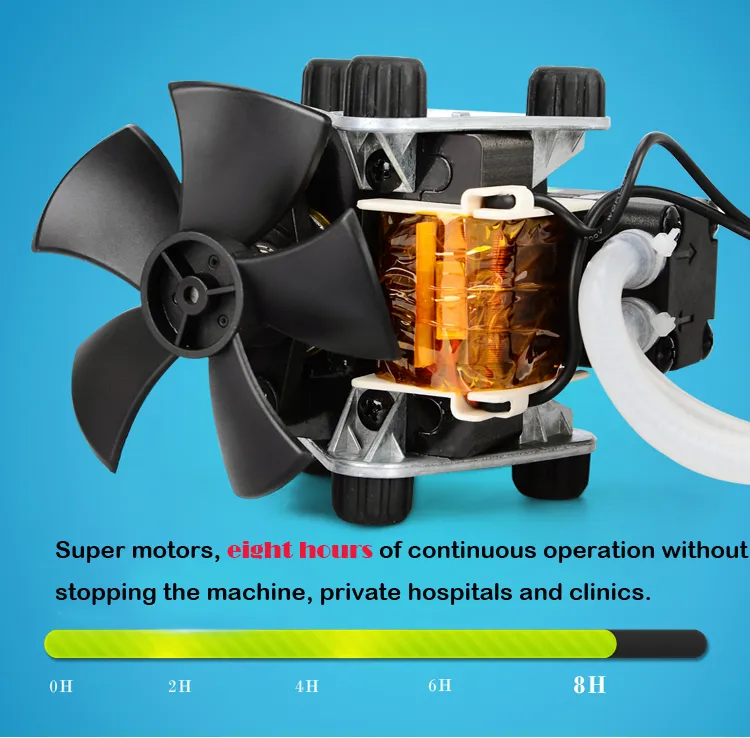

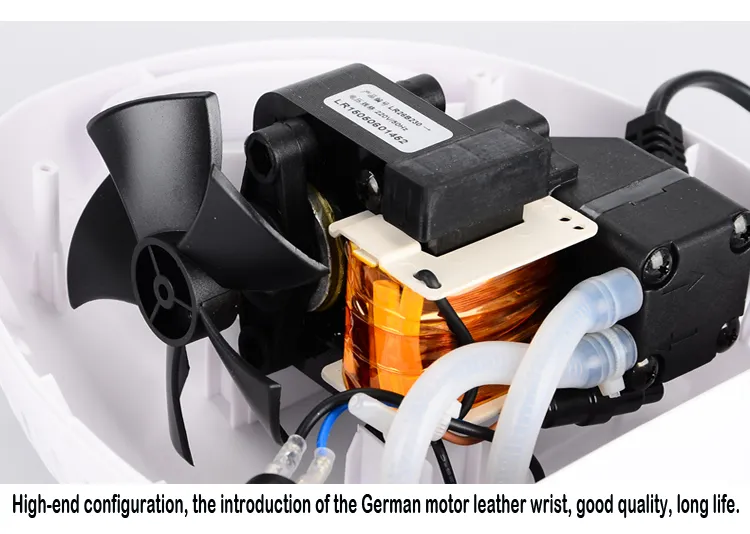

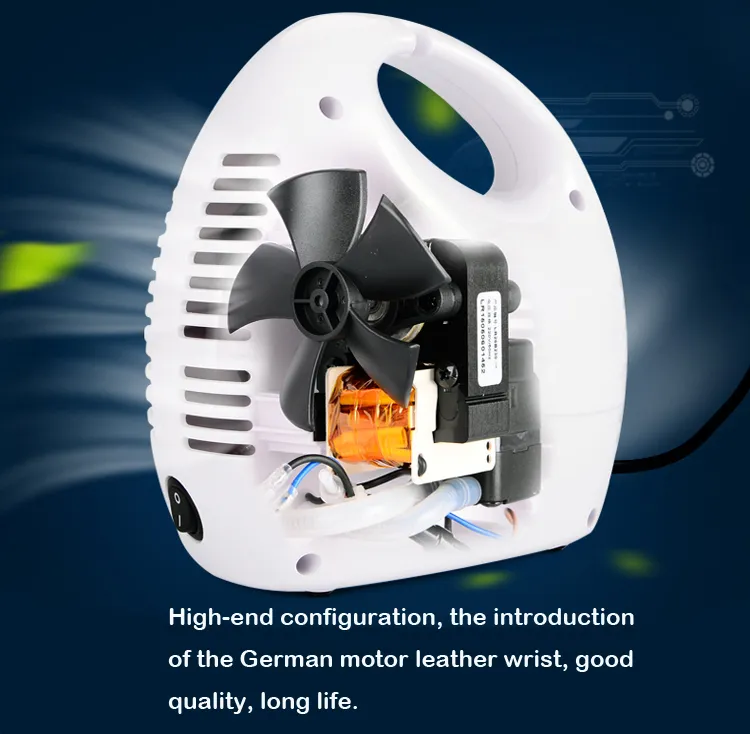

High/Durable Compressor Features:

Extensive lifespan: running up to 2000 hours.
Maximum pressure: approximately 40 psi.
Flow rate: 6 ~ 7 liters per minute.
26/30mm stamping with rising temperature tolerance up to 180°C.

Technical Parameters

Model Reference	BC68003
Input Voltage	AC 120V/60Hz / 220V/50HZ
Extreme Pressure	>205 kpa
Power Consumption	≤200VA

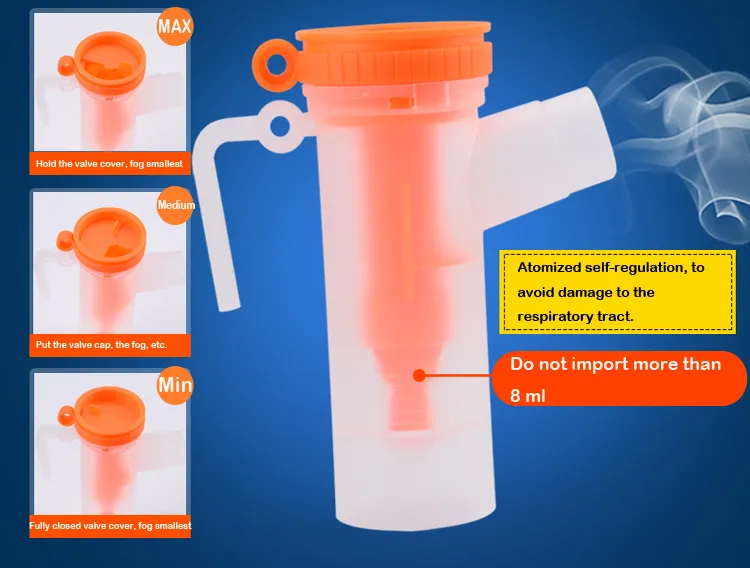

Medication Capacity	6ml
Particle Size	Respirable Fraction 0.5 to 5μm (80%)
MMAD	2.0 μm
Avg Nebulization Rate	≥0.2 mL/min
Operation Mode	20 minutes on, 40 minutes off
Operating Humidity	30 to 75% RH

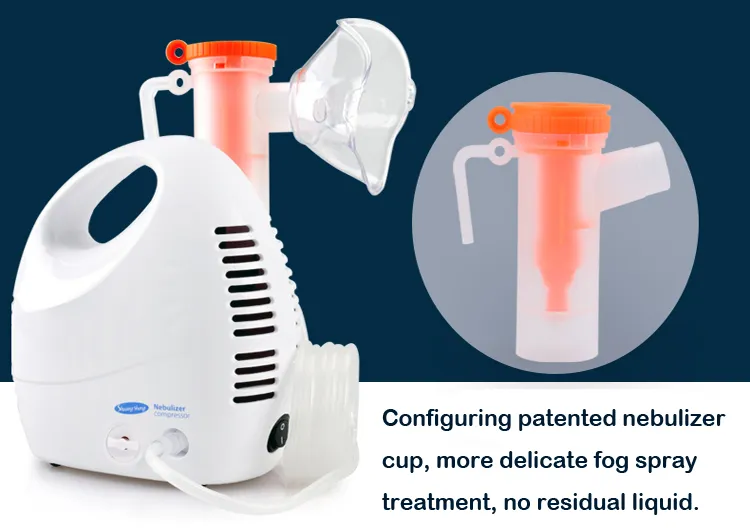

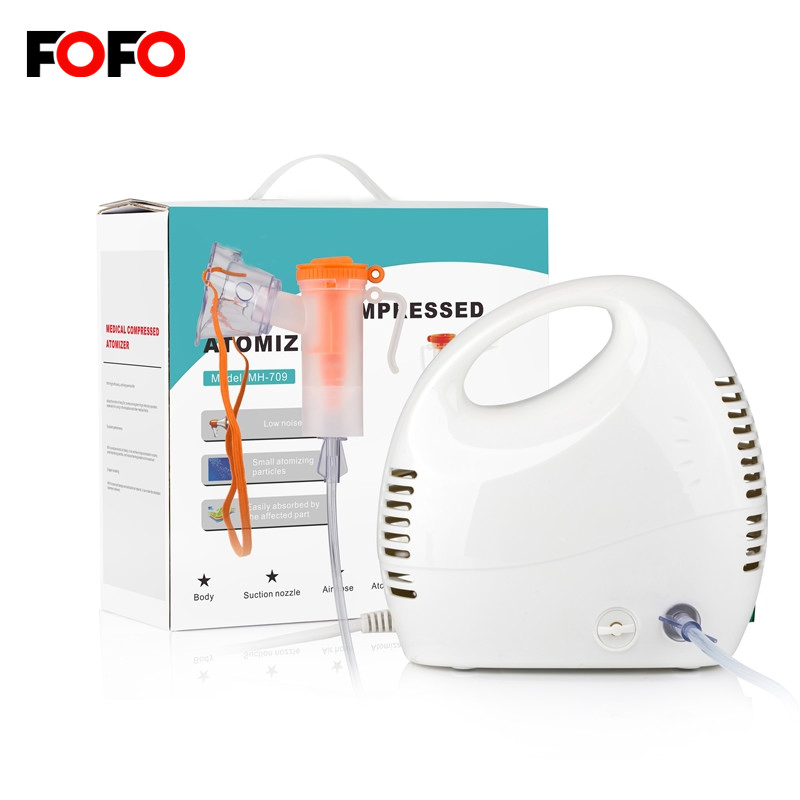

Nebulizer Compressor Kits

Each standard set includes:

1pc Adult Mask
1pc Child Mask
1pc Mouth Piece
5 Filters
1pc 1.2M Tube

Product Display

Frequently Asked Questions

Q: What is the primary use of this compressor nebulizer?

A: It is a medical drug delivery device used to convert liquid medication into a mist for inhalation, specifically designed for treating upper and lower respiratory tract conditions.

Q: How long can the compressor last?

A: The device features a high-durability compressor that is rated for a long service life of up to 2000 hours.

Q: What are the particle size and MMAD specifications?

A: The respirable fraction is 0.5 to 5μm (80% of particles), with a Mass Median Aerodynamic Diameter (MMAD) of 2.0 μm, ensuring efficient lung penetration.

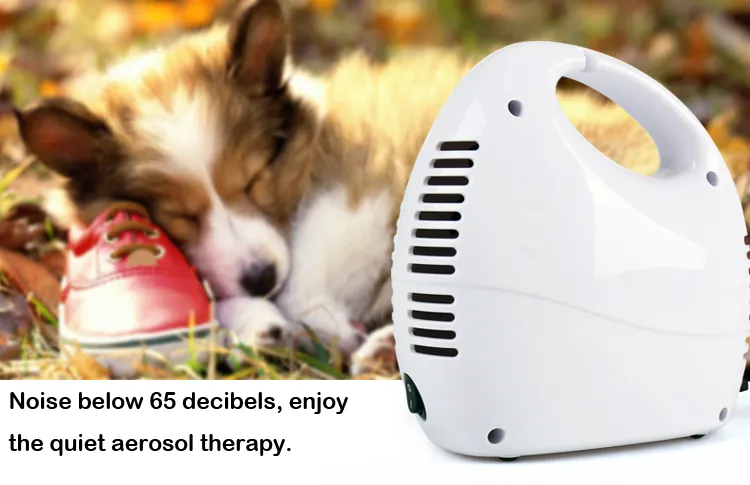

Q: Is the device noisy during operation?

A: No, the noise level is designed to be kept below 60 dBA, making it suitable for comfortable home use.

Q: What certifications does this product hold?

A: This compressor nebulizer system is fully certified with ISO, FDA (510K), and CE standards for medical equipment safety and performance.

Q: What is the recommended operation cycle?

A: For optimal performance and device longevity, it is recommended to operate for 20 minutes "on" followed by 40 minutes "off".
