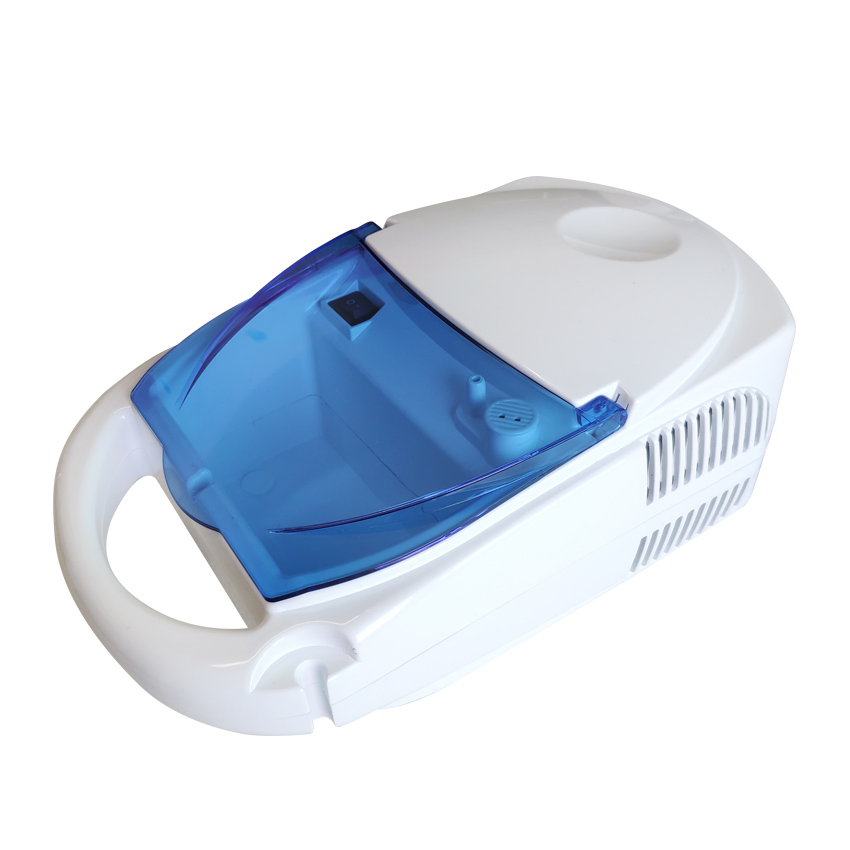

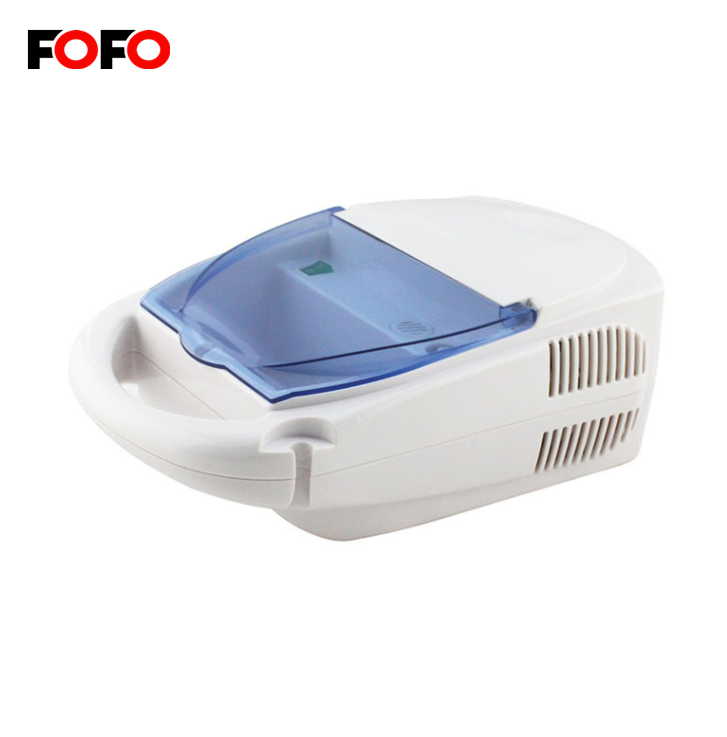

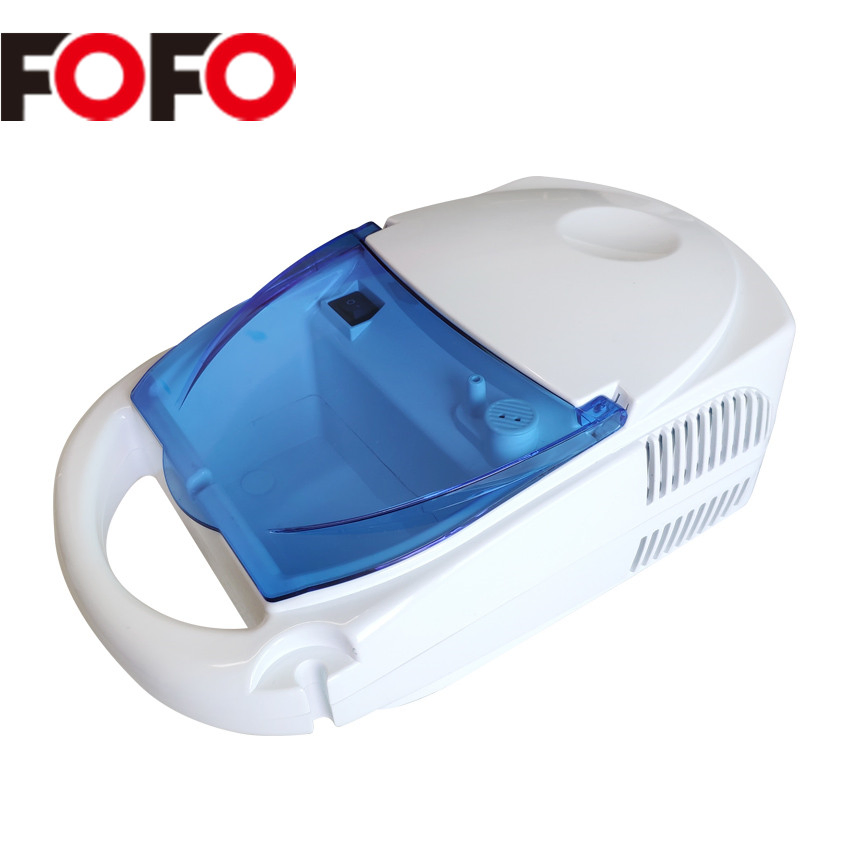

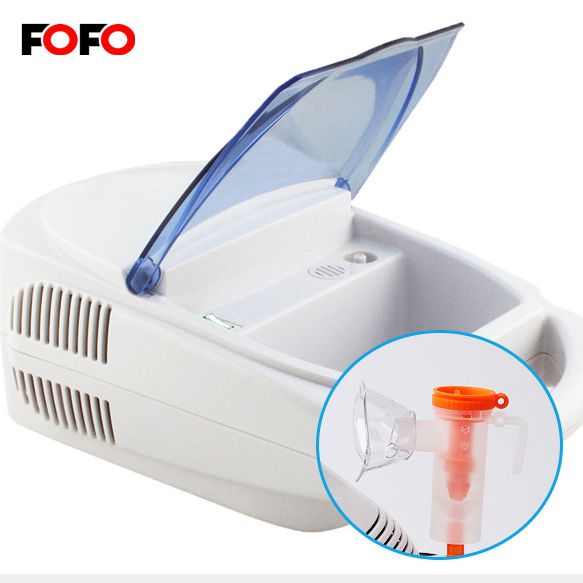

Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
1 / 5
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer
Medical Treat The Respiratory Disease Cartoon Nebulizer

Medical Treat The Respiratory Disease Cartoon Nebulizer

Customization: Available
Sterilization: Dust-Free
Feature: Reusable
Send Inquiry

Product Description

Basic Information

Application
Clinical, Household
Material
Plastic
Certification
CE, FDA, ISO13485
Power Type
Electric
Group
All People
Rated Current
≤ 0.7A (When Load)
Rated Power
≤ 80W (When Load)
Warranty
2 Years
Color
White
Noise Level
Below 60 dBA
Medication Capacity
6ml
Production Capacity
100,000 PCS/Month

Product Description

Nebulizer Compressor: A specialized medical device designed for treating respiratory diseases through aerosol therapy. It converts liquid medication into a fine mist that can be easily inhaled into the lungs.
Medical Nebulizer

Key Features & Compressor Performance:

  • High-durability compressor capable of running for 2,000 hours.
  • Maximum pressure of approximately 40 psi with a flow rate of 6~7 liters per minute.
  • Equipped with 26/30mm stamping, withstanding temperatures up to 180°C.
  • Optimized for both upper and lower respiratory tract treatments.

Technical Specifications

COMPRESSOR NEBULIZER BC68003
InputAC 120V/60Hz or 220V/50HZ
Power Consumption≤200VA / 180VA
Extreme Pressure>205 kpa
Medication Capacity6ml
Particle Size≤5 μm & 60% (Respirable Fraction 0.5 to 5μm)
MMAD2.0 μm
Average Nebulization Rate≥0.2 mL/min
Noise Level≤60 dB
Compressor Pressure Range30-58 psi
Operating Pressure Range7-10 psi / 12-14.5 Psi
Liter Flow Range6-10 LPM
Operation Mode20 minutes on, 40 minutes off
Operation Temperature10ºC to 40ºC (50ºF to 104ºF)
Operation Humidity30 to 75% RH

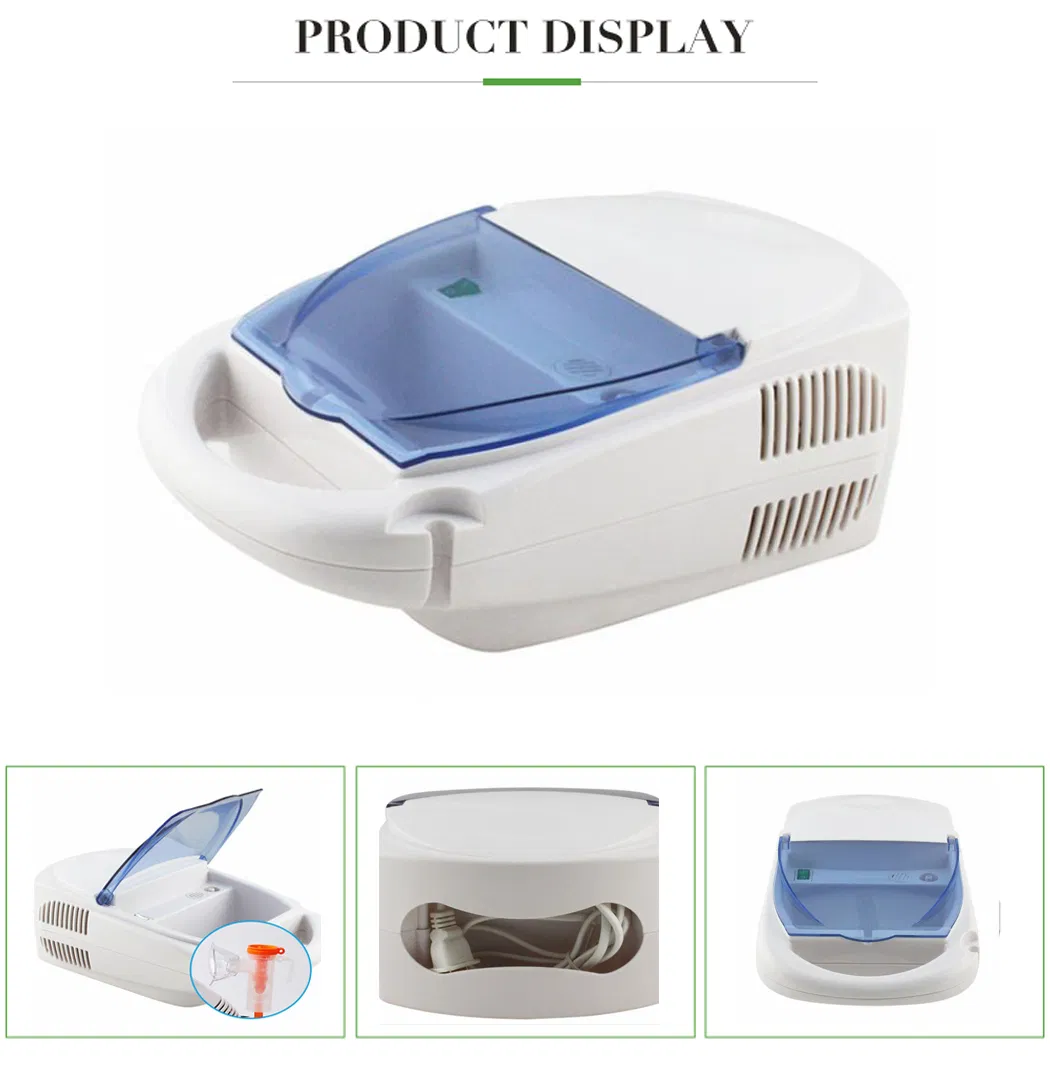

Product Presentation

Nebulizer Detail 1
Nebulizer Detail 2
Nebulizer Kits
Nebulizer Components
Standard Kit Includes:
Adult & Child Masks • Mouth Piece • 5 Filters • 1.2M Tube
Comprehensive View

Frequently Asked Questions

What is the primary use of this compressor nebulizer? It is a drug delivery device used to administer medication in the form of a mist inhaled into the lungs, primarily for treating upper and lower respiratory tract diseases.
Is this device suitable for both adults and children? Yes, each set includes one adult mask and one child mask, making it suitable for all age groups.
What is the expected lifespan of the compressor? The high-quality compressor is designed for durability, with a tested running time of up to 2,000 hours.
How loud is the machine during operation? The noise level is kept below 60 dBA, ensuring a relatively quiet treatment environment for home or clinical use.
What are the particle size specifications for medication? The device produces a respirable fraction of 0.5 to 5μm, with an MMAD of 2.0μm, ensuring efficient medication absorption.
What is the recommended operation mode? The standard operation mode is 20 minutes of active use followed by a 40-minute rest period to maintain optimal performance.
