| Model NO. | GEV-650 | Certification | CE, ISO13485 |
| Group | Middle-aged and Old | Outer Diameter of Head End | ≤φ9.8mm |
| Outer Diameter of Main Hose | ≤φ9.6mm | Working Length | ≥1050mm |
| Total Length | ≥1335mm | Transport Package | Carton |
| Specification | Metal | Origin | China |
| HS Code | 3203964268 | Resolution | 4K Ultra HD |

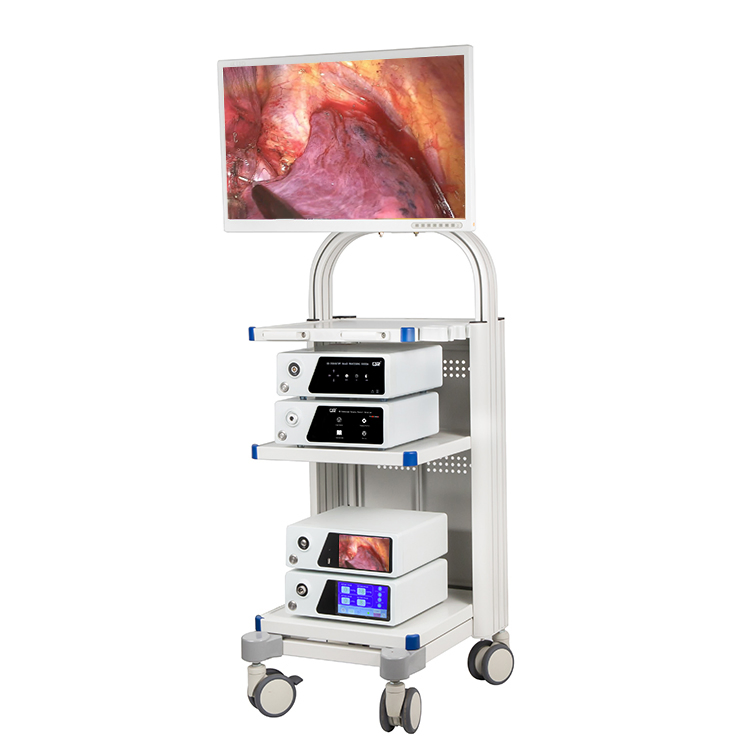

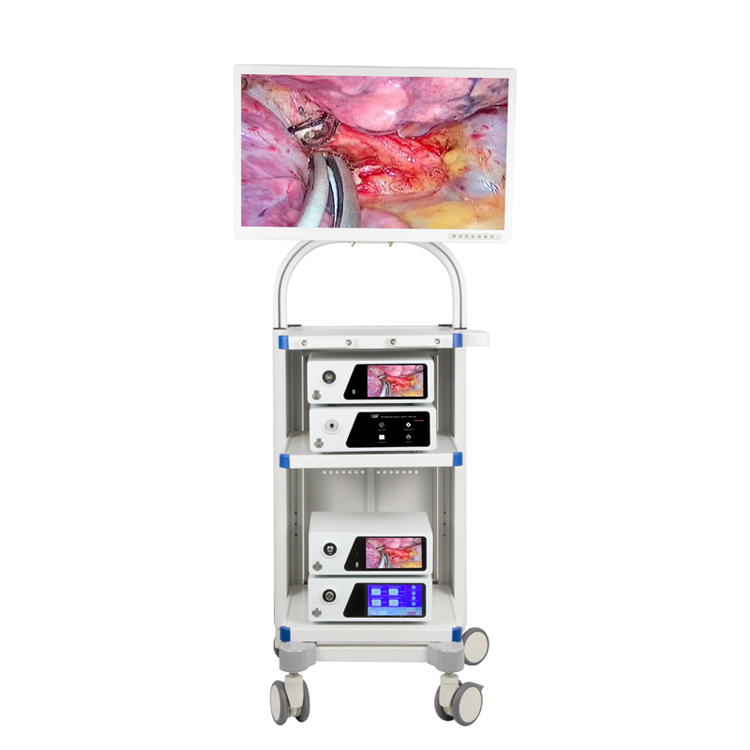

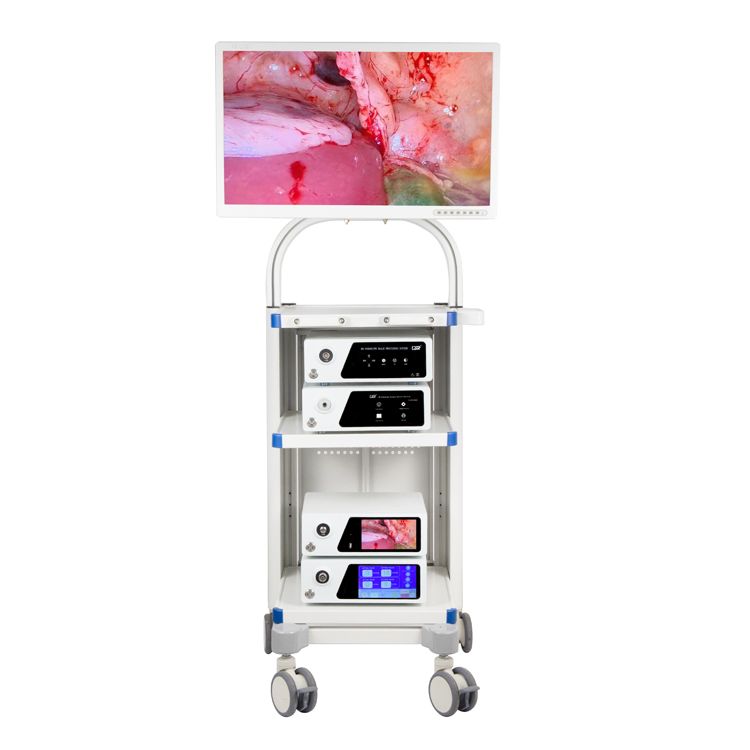

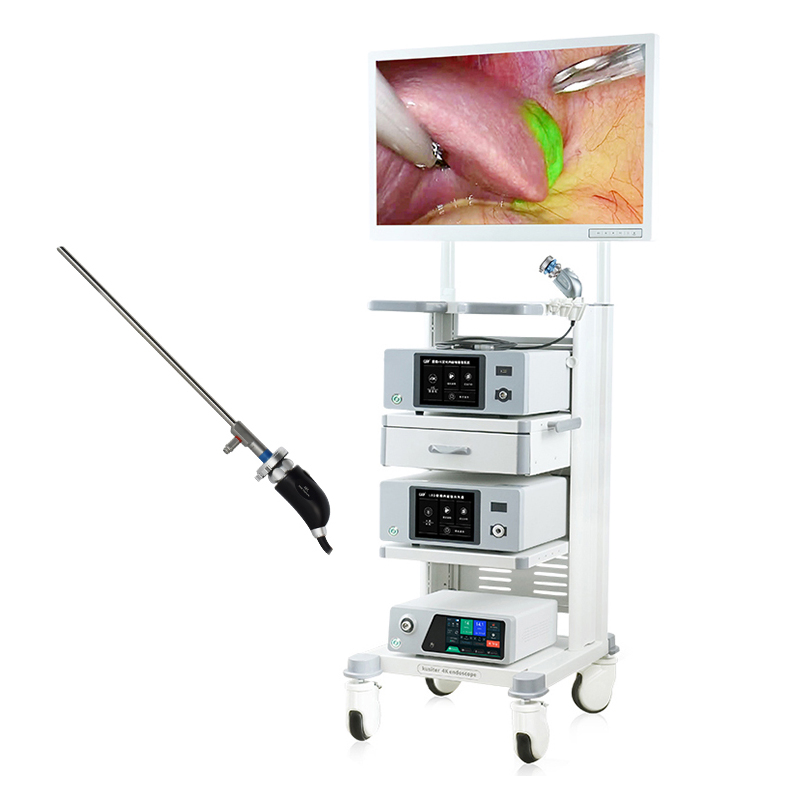

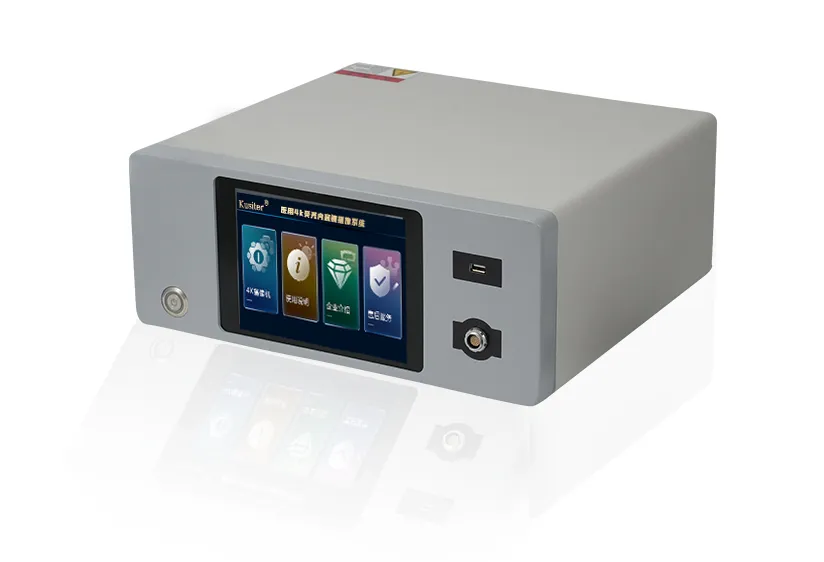

The 4K imaging system offers four times the resolution of 1080p and nine times the resolution of HD imaging systems. This high resolution provides exceptional image clarity and detail, allowing surgeons to see fine structures and subtle changes during the surgical procedure.
4K fluorescence laparoscopy systems utilize advanced image processing technology and optical design to reproduce accurate and vivid colors within the surgical field. This enables surgeons to observe patterns, structures, and abnormalities in high precision.
The addition of fluorescence technology allows the use of contrast agents, such as indocyanine green (ICG), which can highlight specific tissues or structures. It emits a fluorescent signal under near-infrared light, enabling surgeons to clearly identify lymphatic vessels, blood vessels, and tumors.

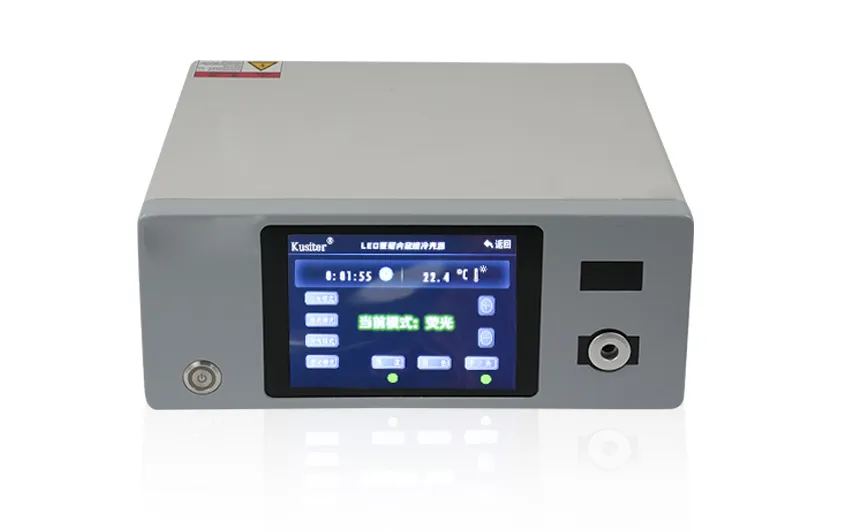

Systems offer multiple imaging modes, including high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging. These modes provide valuable information about tissue perfusion and lymphatic drainage.
| Camera Sensor | 9,000,000 pixels 4*1/2.8" CMOS |
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Video Output | HDMI 2.0 / 3G-SDI / DVI / USB 3.0 |
| Shutter Speed | 1/60 ~ 1/60000 (NTSC) |
| Scanning System | Line by line scanning |
| Application | Thoracic, Urology, Hepatobiliary, Gastrointestinal, Gynecology |
| Screen Size | 32" / 55" |
| Input Interface | VGA, SDI, S-VIDEO, DVI, VIDEO, etc. |
| Resolution | 4096 * 2160 |
| Display Color | 1.07B |
| Aspect Ratio | 16:9 |

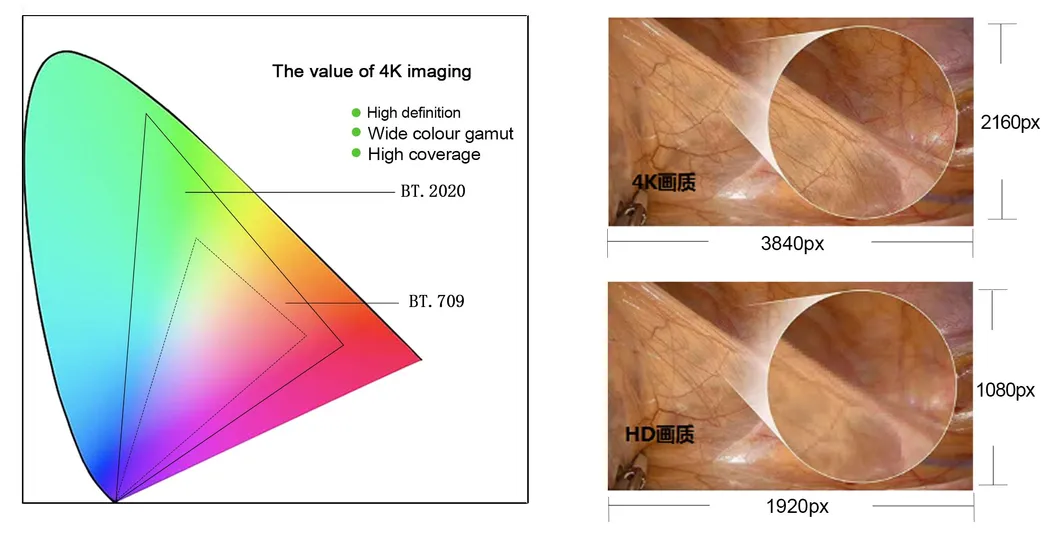

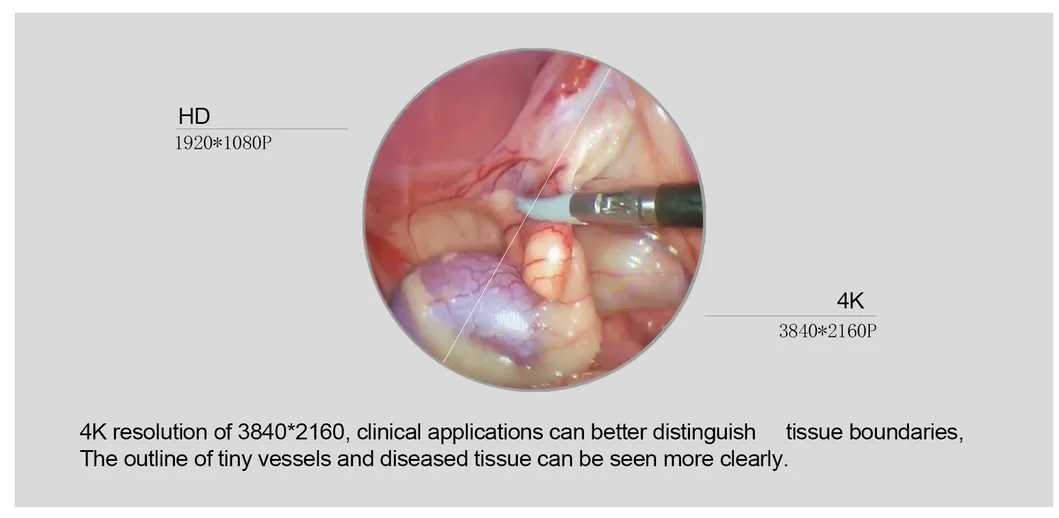

A physical resolution of 3840x2160 (4K) is four times the area of ordinary Full HD (1920x1080). This allows better discrimination of tissue boundaries such as fat, nerve, and vascular junctions.

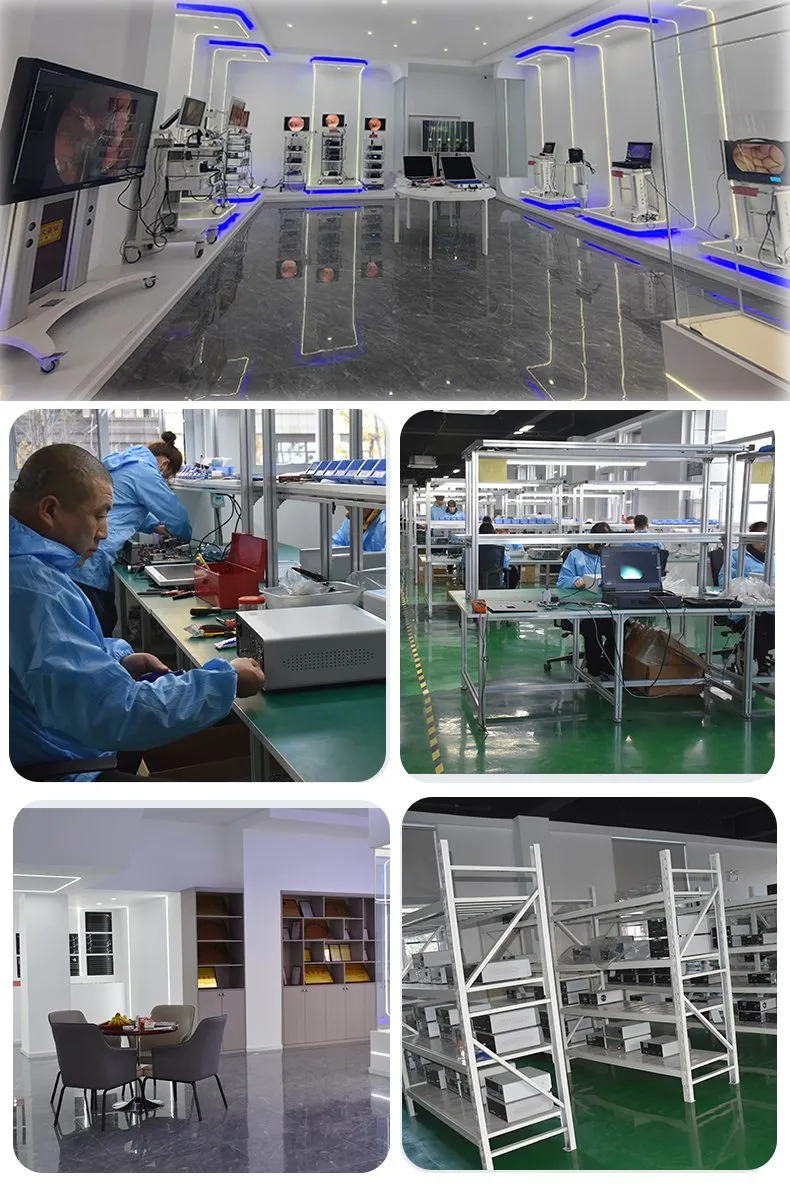

We are a comprehensive company engaged in the production, development, and sales of medical devices. We strive for excellence with high-performance, high-tech, and high-quality products, focusing on modern clinical applications and patient needs.
Main Product Lines: Endoscope Image Processing Systems, LED Cold Light Sources, High-Definition Medical Monitors, Pneumoperitoneum Machines, Laparoscopy, Hysteroscopy, and related simulators.
