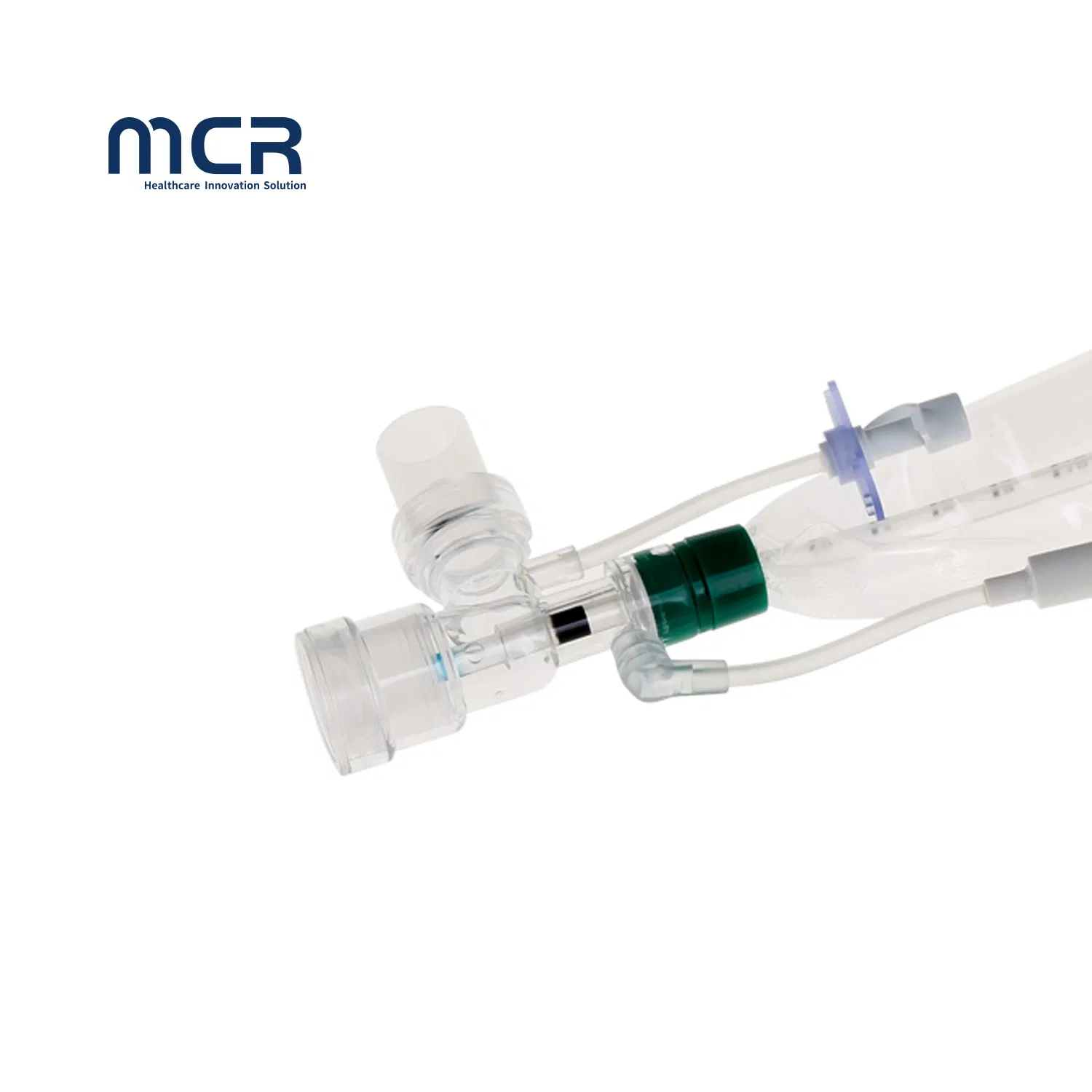

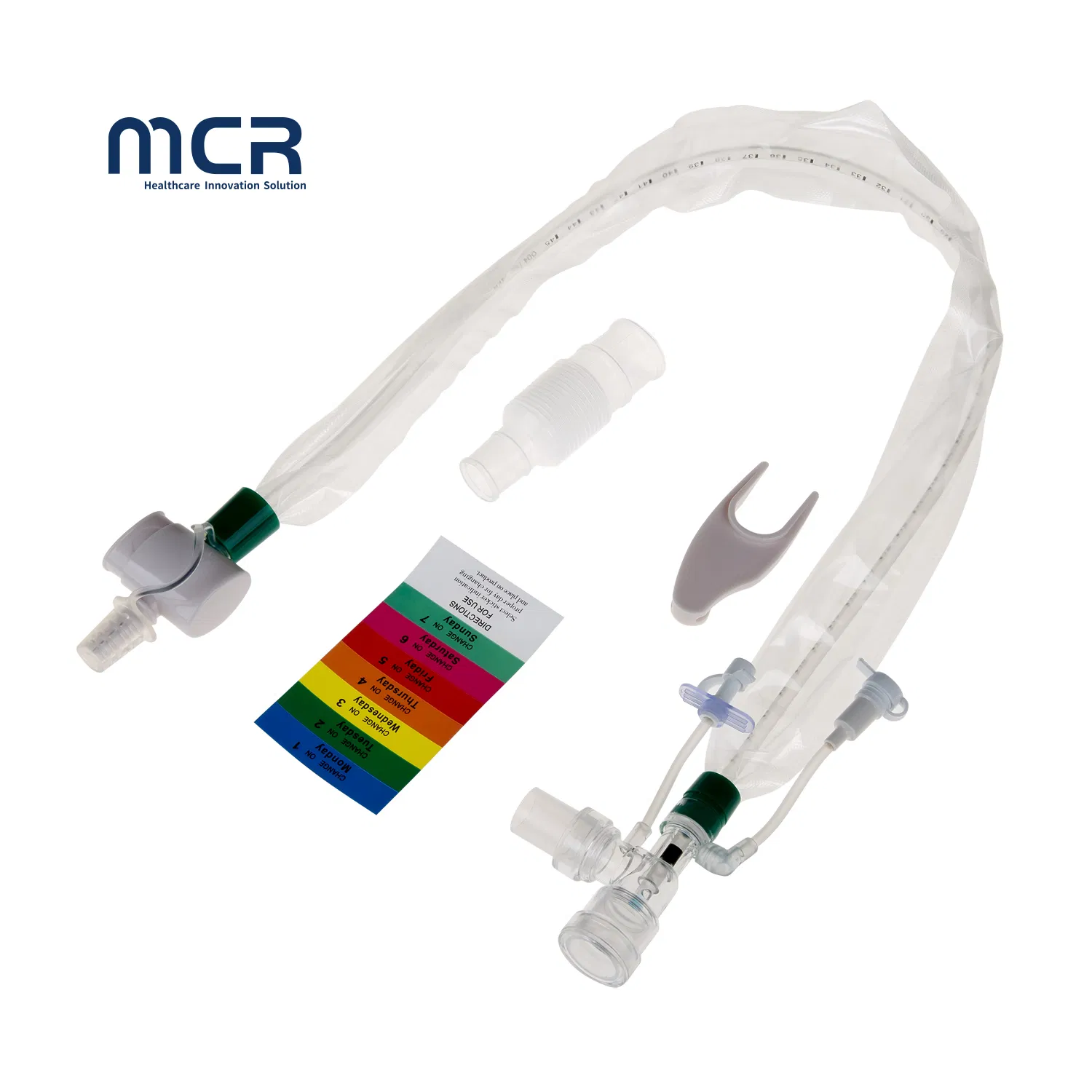

Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
1 / 5
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485
Closed Suction System Single Lumen 24 Hour L Type ISO13485

Closed Suction System Single Lumen 24 Hour L Type ISO13485

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
MC-02400
Sterilization
Ethylene Oxide Sterilization
Quality Guarantee
5 Years
Patient Group
Neonate/Adult
Relative Type
24h/72h/Child/Adult
Certificate
CE/ ISO13485
Specification
5FR/6FR/7FR/8FR/10FR/12FR/14FR/16FR
HS Code
901839
Production Capacity
100,000PCS/Month
Origin
China
Closed Suction System
Product Overview

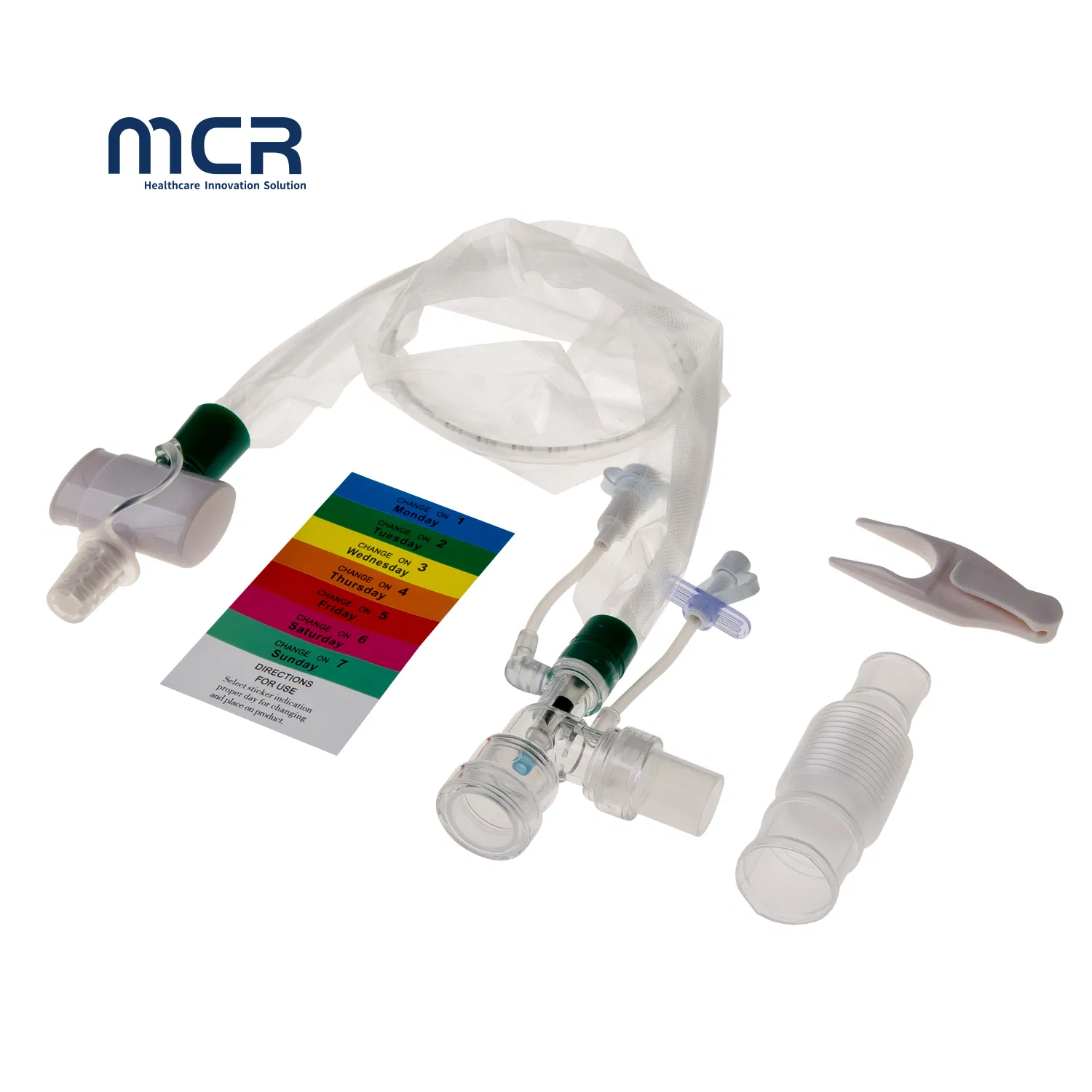

Closed Suction System Single Lumen 24 Hour L Type is an advanced medical solution designed for respiratory care.

●
Designed with a protective sleeve to isolate germs inside and help caregivers avoid cross-infection.
●
Simultaneously ventilation design keeps the patients comfortable during suction without stopping the air ventilation.
●
Color-coded rings provide fast recognition of catheter size.
Product Detail
Key Features
🔵
Continuous Breathing: Facilitates simultaneously ventilation for patient safety.
🔵
Soft Blue Suction Tip: Reduces damage to the patient while suctioning; easier for irrigational cleaning after catheter return.
🔵

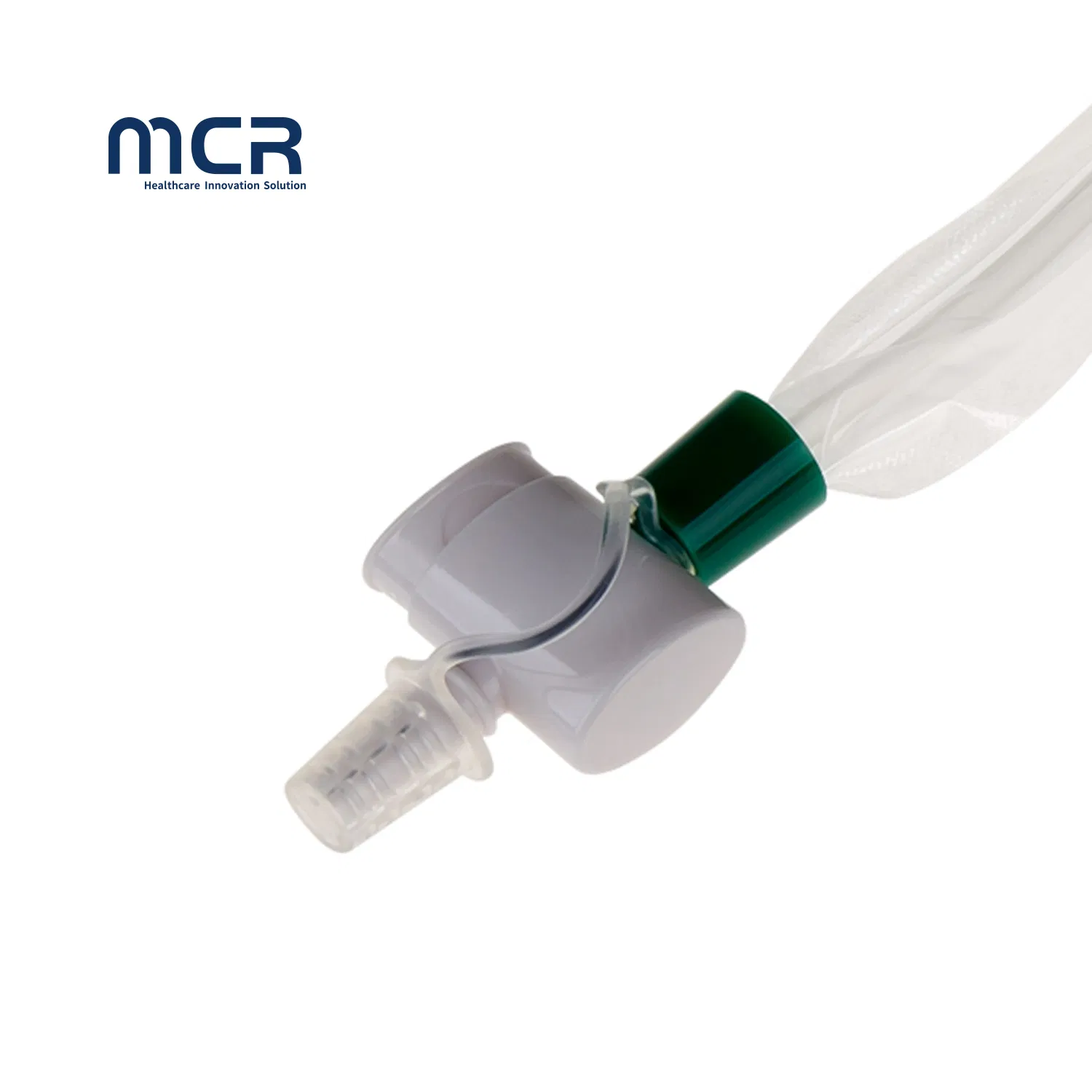

Double Swivel Connector: Equipped with a 15mm connector for flexible movement.
🔵
Disconnecting Wedge: Integrates both disconnecting and clipping functions.
🔵
Universal Compatibility: Designed for both Endotracheal and Tracheostomy tubes with various lengths available.

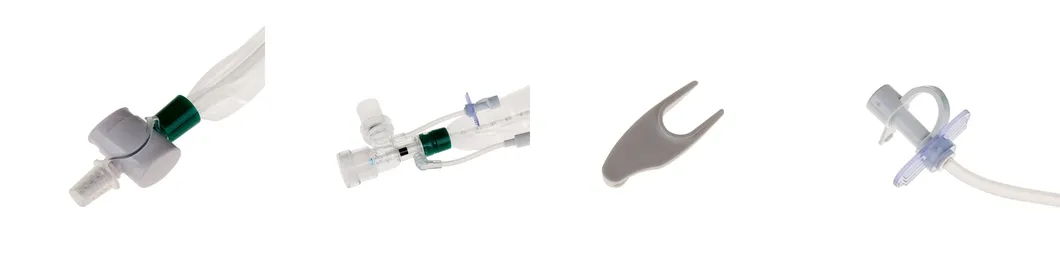

Feature Diagram
Packaging & Delivery

Packing: 1pc/sterilized pouch, 10pcs / inner box, 100pcs / shipping carton.

Delivery Time: Within 20 days (depending on order quantity).

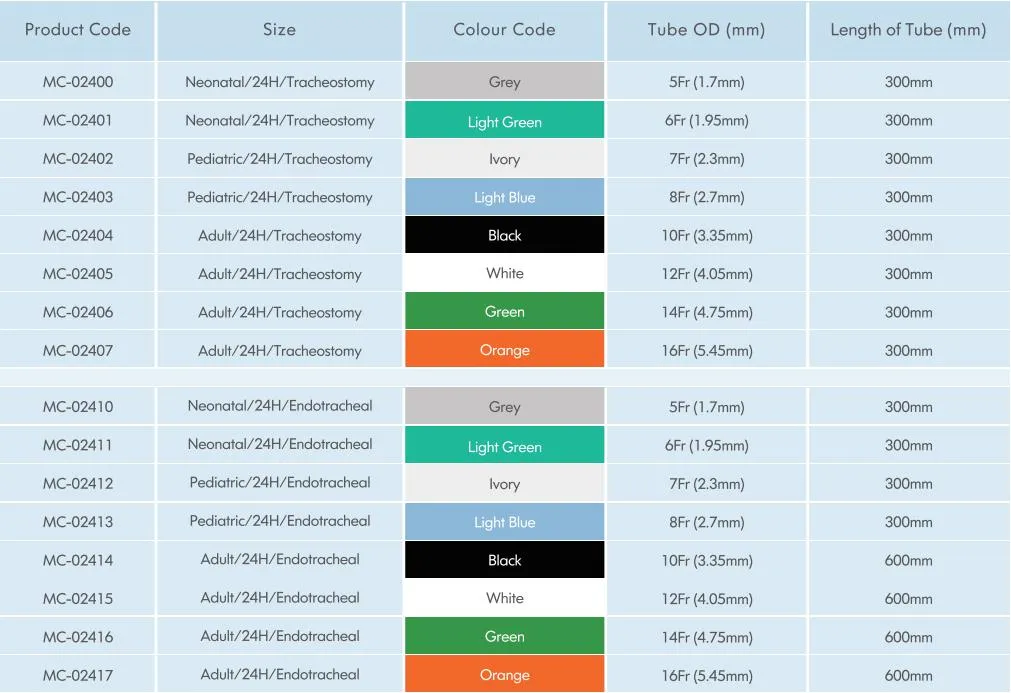

Standard Form Chart
Standard Form
Instructions for Use
Step 1: Set up Procedure
  1. Inspect product integrity before opening.
  2. Connect the tube to the Revolvable adapter and ventilator.
  3. Attach the date label to the color ring.
  4. Ensure the MDI/irrigation port cap is closed.
  5. Verify on-off valve is in the open position before entering the tube.
Step 2: Suctioning Procedure

Caution: Always use recommended vacuum levels and monitor suctioning time.

  1. Grip the three-way adaptor and feed the catheter to the required depth using markers as guidance.
  2. Depress vacuum control valve to apply suction once in position.
  3. Remove catheter until the protective sleeve is straight.
Manufacturing Excellence

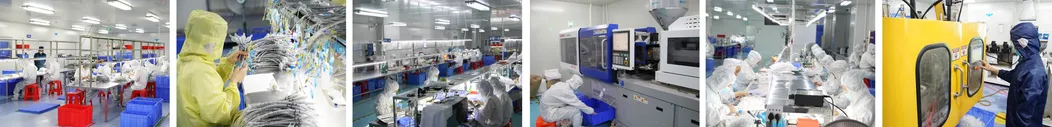

Production Line 1 Production Line 2 Production Line 3
Quality Control Certificates
Equipment 1 Equipment 2

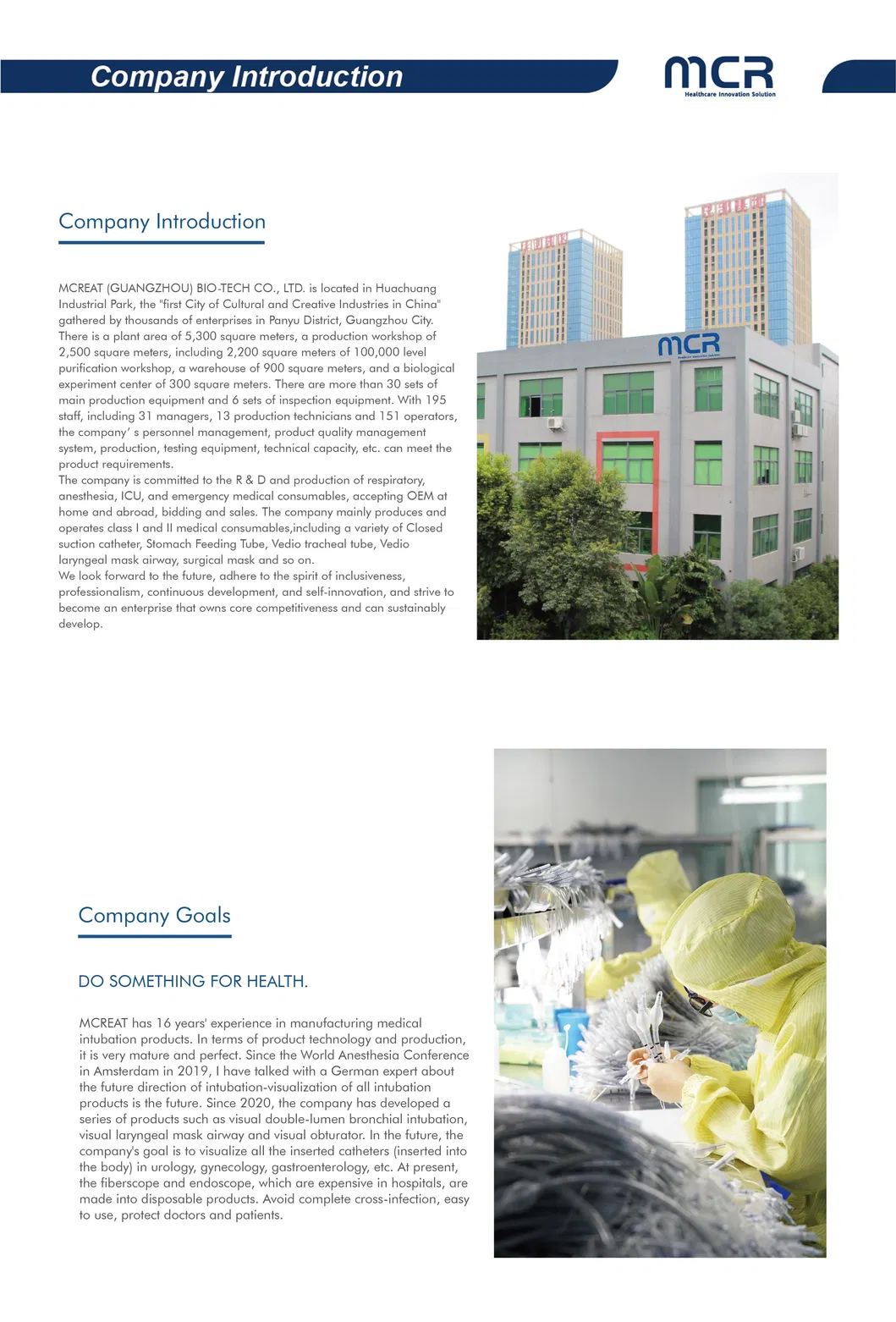

Factory Overview
Frequently Asked Questions
Q1: Do you provide samples for testing?
Yes, we provide samples free of charge. You are welcome to request them for quality evaluation.
Q2: What is the typical delivery time for orders?
Generally, the delivery time is approximately 30 days, though it varies based on the total order quantity.
Q3: What quality certifications do your products hold?
Our main products are fully approved with CE0123, ISO13485, CFDA, and FDA certifications.
Q4: Is the quality of the products guaranteed?
Yes, we offer a 4-5 years quality warranty on our medical products.
Q5: Can these products be customized for specific needs?
Yes, our R&D team supports innovation and customization to meet your specific clinical requirements.
Q6: What is your policy regarding after-sales support?
We maintain a strict Q&A system and take full responsibility for our products post-sale to ensure customer satisfaction.
