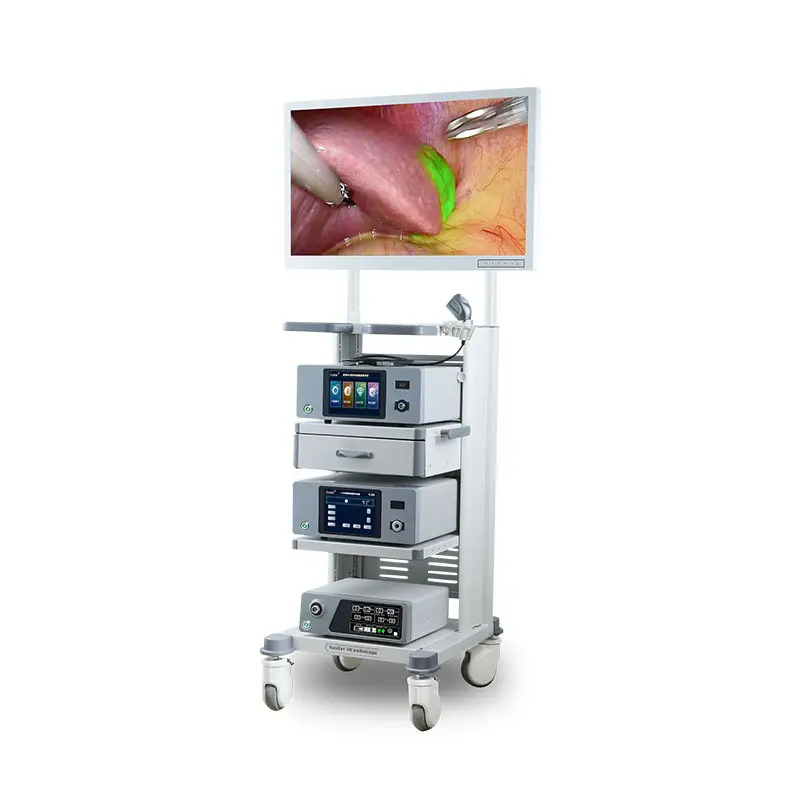

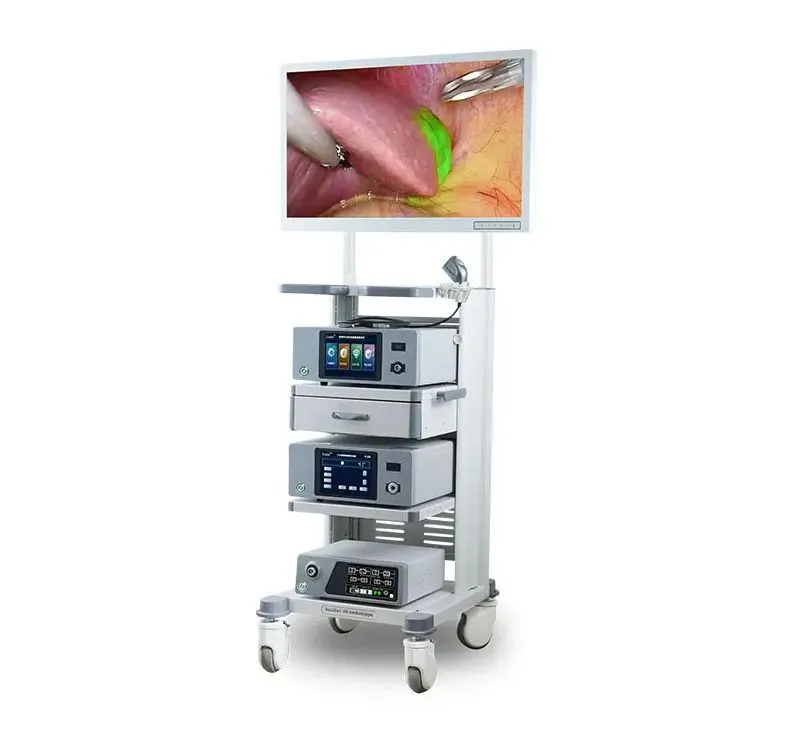

Medical Equipment Endoscope 4K Fluorescence Endoscope Camera System

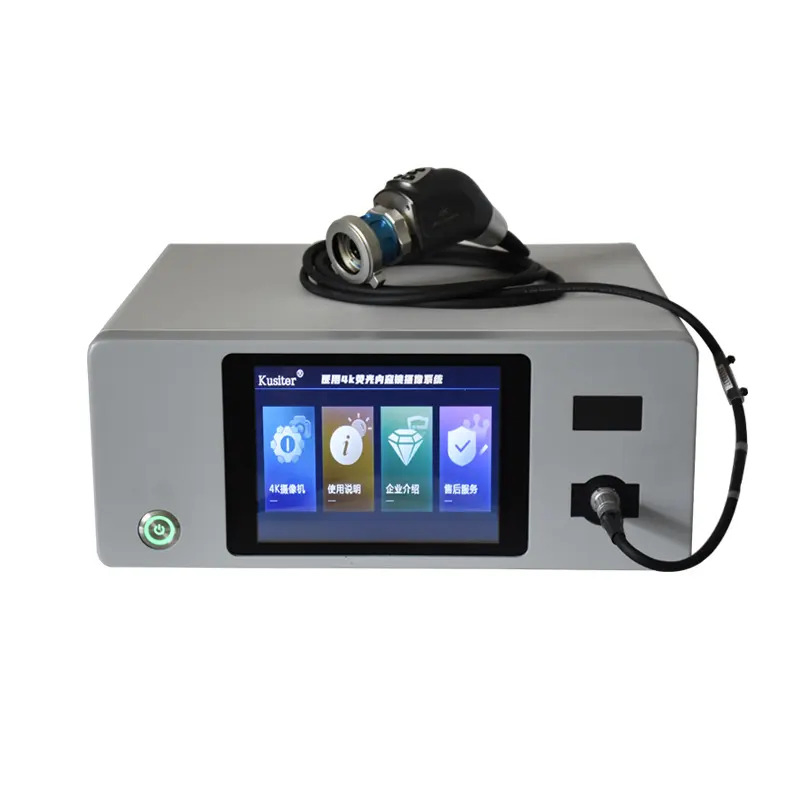

1. Connect to the 4K camera system host to achieve resolution ≥3840×2160 pixels (aspect ratio 16:9).
2. Achieve excellent photosensitive performance and signal-to-noise ratio through 4K ultra-high-definition 4CMOS image sensor.

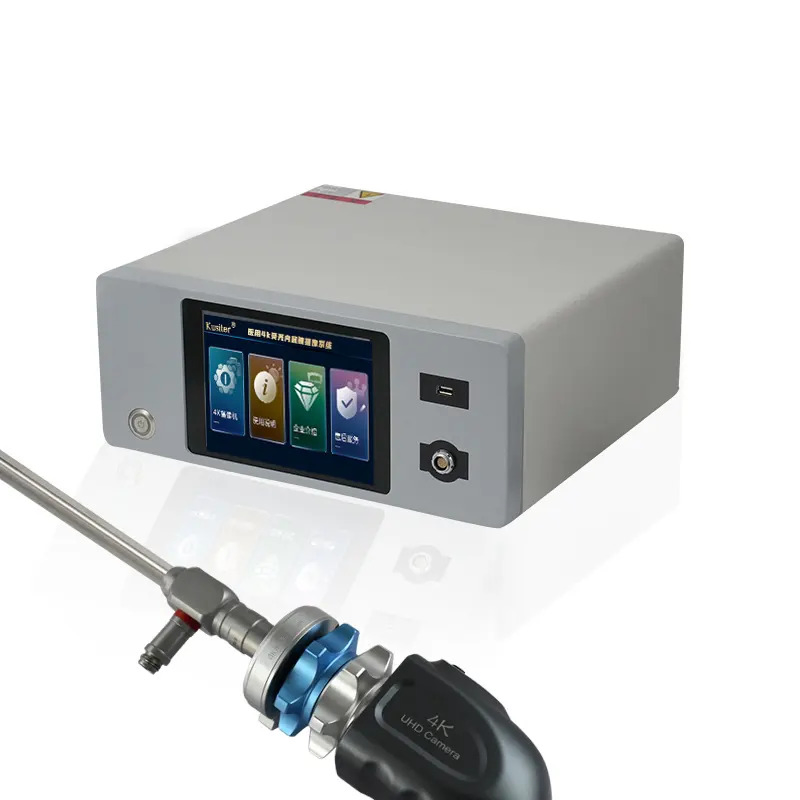

3. 4K dedicated optical lens connection to meet the needs of different surgeries.
4. Electronic magnification function to adjust image size in real time via camera buttons.
5. Customizable camera button functions for surgeon convenience during various operations.
4K fluorescence laparoscopy systems offer multiple imaging modes, including high-definition white light imaging, black and white fluorescence imaging, and green fluorescence imaging. These modes provide critical information about tissue perfusion, lymphatic drainage, and abnormal structures for safer, more precise surgeries.

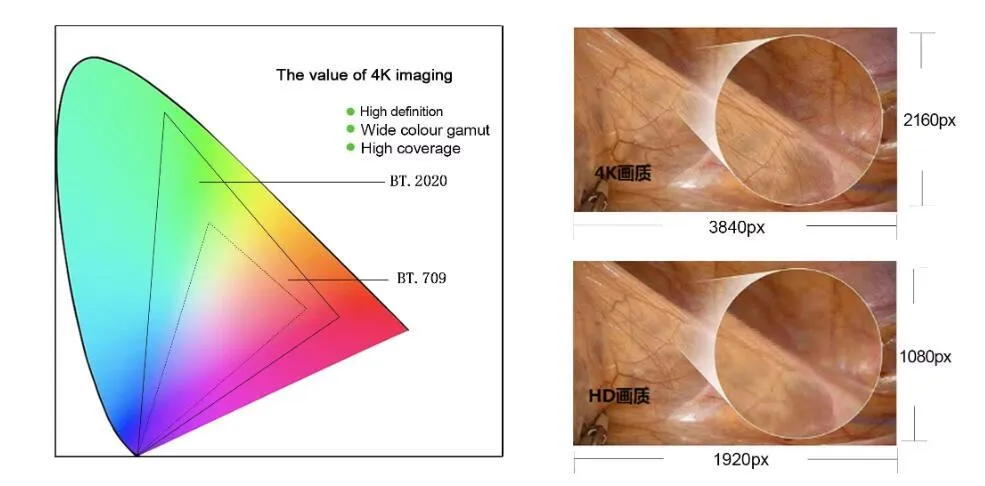

The BT.2020 colour standard allows better discrimination of tissue boundaries, such as fat, nerve, and vascular junctions, enabling clearer observation of small blood vessels and pathological tissue contours.
| Camera | 9,000,000 pixels 4*1/2.8 "CMOS |
| Resolution | 3840(H)*2160(V) |
| Definition | 2100 Lines |
| Minimal illumination | 0.5 Lux |

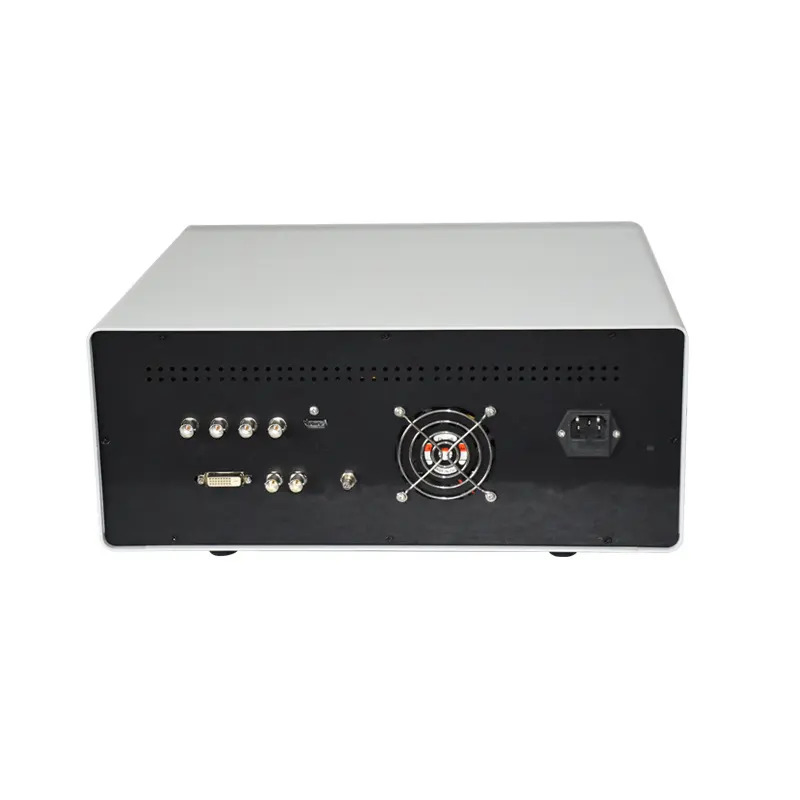

| Video output | HDMI2.0/3G-SDI (4K UHD output) DVI, USB3.0 |
| Shutter speed | 1/60~1/60000(NTSC), 1/50~50000(PAL) |
| Handle cable | 2.8m / Customized lengths available |
| SNR | More than 50db |
| Scanning system | Line by line scanning |
| Application | Thoracic, Urology, Hepatobiliary, Gastrointestinal, Gynecology |
